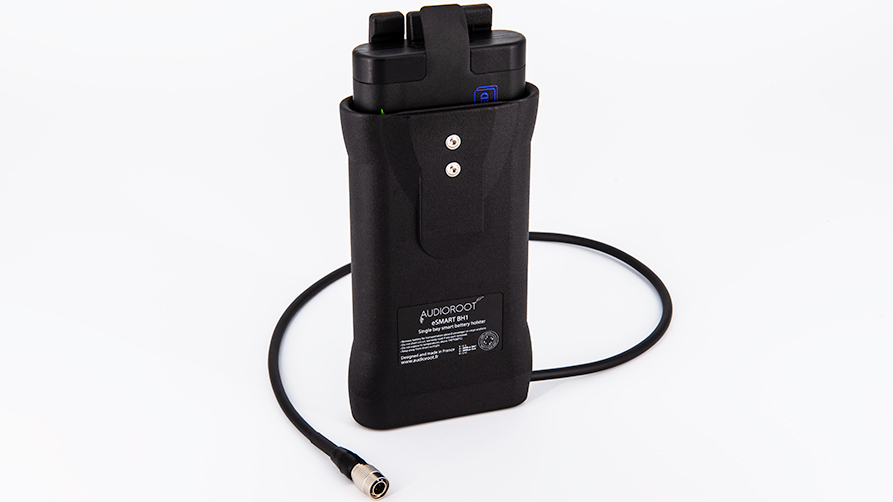

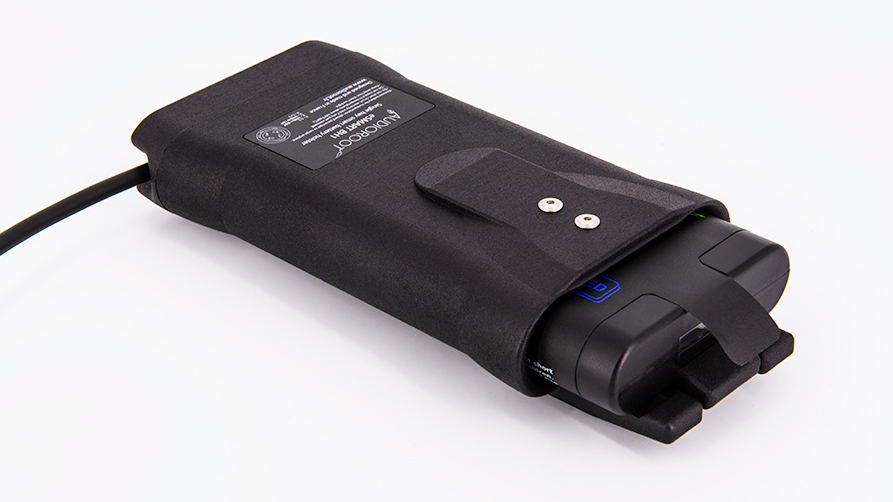

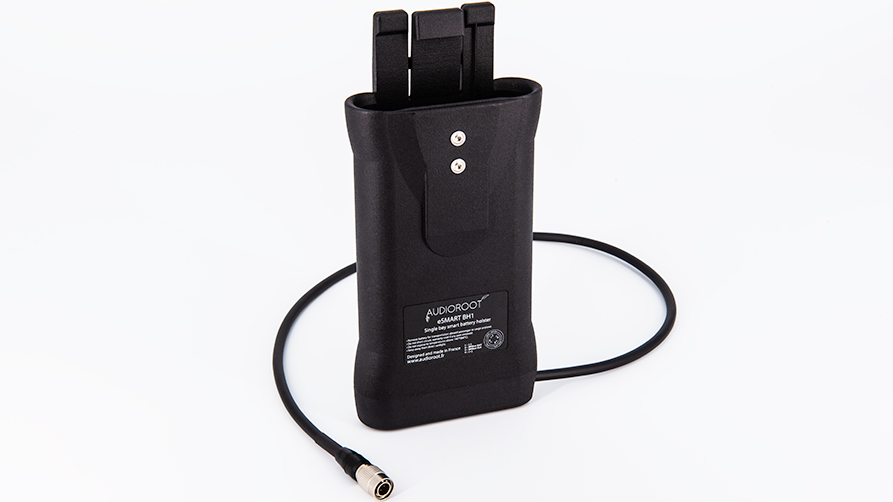

eSMART BH1

Single battery holder/holster with DTAP and lead output cable for eSMART lithium battery

  • battery slot with spring loaded locking mechanism for easy single hand removal

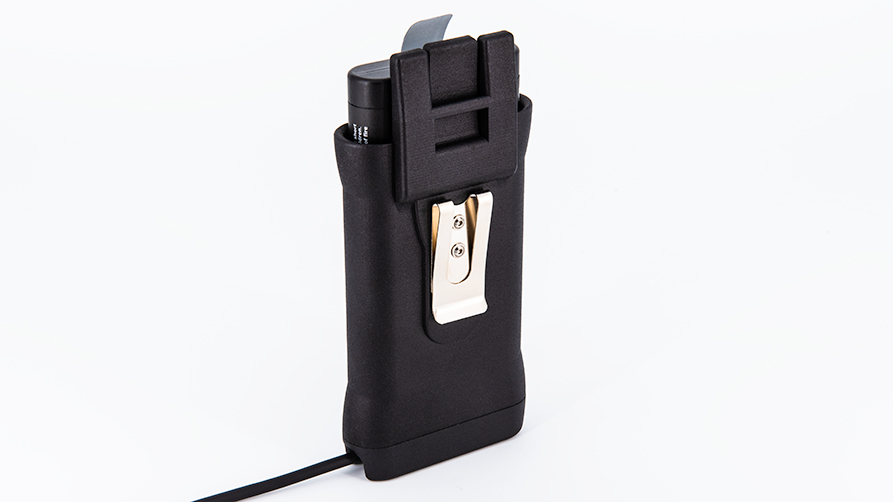

  • belt/bag clip which can be mounted on both sides

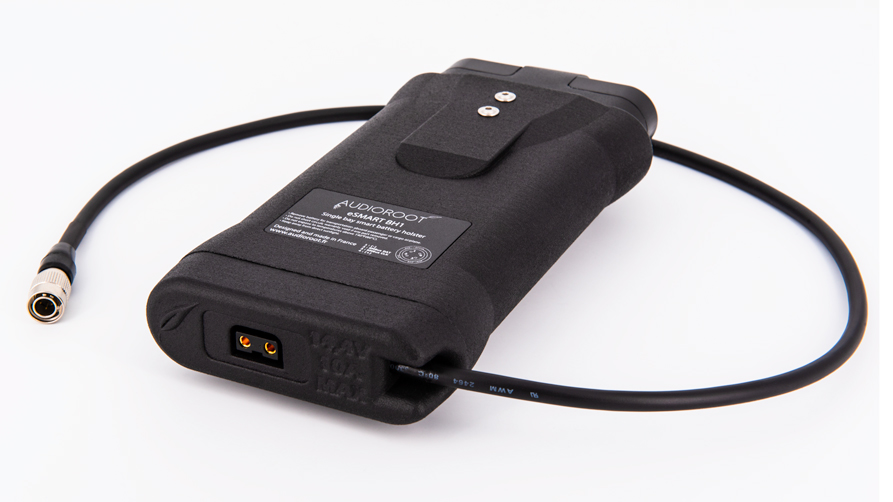

  • 1 x D-TAP output
  • 1 x lead output 4 conductors smBUS cable
  • Compatible with 4S2P style (long) batteries such as the eSMART Li-96neo and Li-98Wh.

The BH1 is available with different connectors

  • BH1-H : 4 pin Hirose compatible connector (default)
  • BH1-T : 4 pin Switchcraft female connector
  • BH1-X : 4 pin Neutrik XLR female connector

Default cable  length is 60cm. Other lengths are available on request .

Custom ordering code BH1-X-XXX where XXX is the cable length in cm from 20 to 150cm.

Default reference is BH1-H-060 with Hirose output connector and 60cm cable length.

Weight (emtpy) : 200g

Weight (with battery) : 640g

Dimensions : 192x90x41mm

Battery not included
