eSMART K-ART

Location sound cart dual battery power distribution system with universal fuel gauge

Product description - ENGLISH

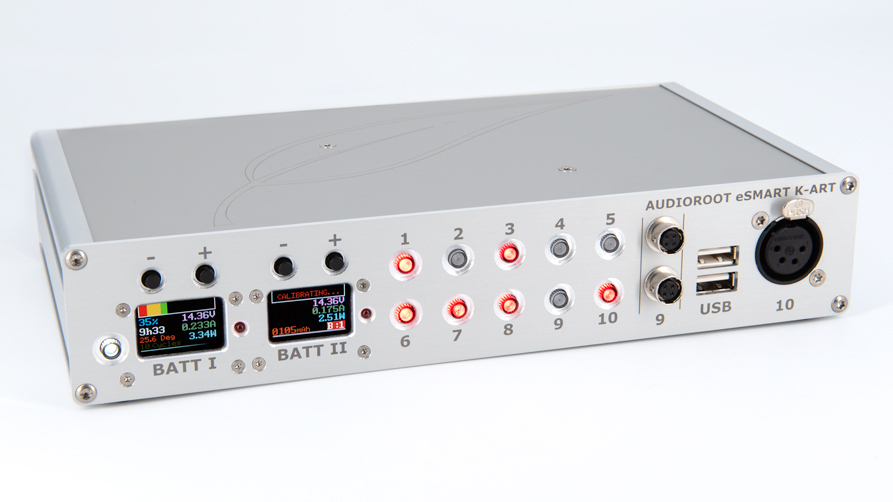

The AUDIOROOT eSMART K-ART is a low footprint power distribution box with a total of 16 direct DC power outputs and 4 x USB 5V ground isolated outputs. The K-ART includes 10 led illuminated power switches, a main power switch and 2 battery fuel gauges. Like it’s little brother eSMART BG-DU the K-ART is fully compatible with any type of battery ranging from 9 to 18V. When used with our eSMART batteries the K-ART provides full battery informations without any calibration routine.

This product was designed for use on small to medium size location sound carts. The power distributor can be connected to 2 batteries at once. The 2 batteries will discharge simultaneously thru an integrated ideal diode. These batteries can be of any type of chemistry  (SLA, NI-MH or LI-ION) and the 2 fuel gauges provide all the informations required to monitor the batteries state of charge (voltage, current, power, etc…).

The eSMART K-ART uses internal coulomb counters and a calibration routine to measure each battery’s true capacity and display it’s remaining capacity in real time. This power distributor is also fully compatible with our full line of Li-XXwh smart batteries. When plugging an AUDIOROOT eSMART battery to the K-ART the user will have access to all the battery’s information without the need to perform any type of calibration.

The K-ART can handle standard (non smbus) batteries from other manufacturers up to 40Ah. A special version capable of handling batteries up to 200Ah can be delivered upon request.

Key features :

  • 10 switchable DC power paths via led illuminated push button switches (on/off state of each switch is stored and recalled automatically on each power up)
  • 1 main power illuminated push button switch
  • 12 x HRS 4 DC power outputs (2 on the front, 10 on the rear of the unit, all Hirose outputs are switched on and off by pairs)
  • 4 x XLR 4 DC power outputs (1 on the front, 3 on the rear of the unit). Each XLR 4 output has it’s own power switch
  • 4 ground isolated USB ports (allways on). 2 outputs are located on the front of the unit and 2 outputs are located on the rear of the unit. The K-ART can source up to a total of 3Amps on the 4 USB ports.
  • Real time SOC battery monitoring  : remaining capacity (%), run time estimation, battery voltage, power consumption, power and coulomb counter
  • Polyswitch 2.5A resetable fuses on each Hirose output
  • Polyswitch 4.0A resetable fuses on each XLR4 output
  • Polyswitch 8.0A resetable fuses on each battery input
  • A blinking LED for each battery indicates when the battery capacity falls below 10 %
  • Compatible with any battery ranging from 9 to 18V DC
  • Lightweight aluminum anodized enclosure
  • Size : 228 x 120 x 44mm
  • Weight : 700g

Options :

  • 12V/20W or 12V/30W regulated and ground isolated DC/DC converter on XLR output #1
  • 12V/20W or 12V/30W regulated and ground isolated DC/DC converter on XLR output #2
  • 12V/12W regulated and ground isolated DC/DC converter on HRS output pairs #4
  • 12V/12W regulated and ground isolated DC/DC converter on HRS output pairs #5

Description produit - FRANCAIS

L’ AUDIOROOT eSMART K-ART est un distributeur d’alimentation compact doté de 16 sorties d’alimentation en tension continue ainsi que de 4 ports USB 5V isolés galvaniquement. Le K-ART comporte 10 boutons poussoirs illuminés, un commutateur d’alimentation général ainsi que 2 jauges de batterie universelles. Comme son petit frère l’ eSMART BG-DU le K-ART est compatible avec tout type de batterie avec une tension de service comprise entre 9 et 18V. Lors qu’utilisé avec notre gamme de batteries intelligentes eSMART  le K-ART fournira automatiquement à son utilisateur toutes les informations concernant l’état de charge de ses batteries.

Ce produit a été conçu pour une utilisation sur les roulantes de prise de son de petite et moyenne taille. Le distributeur d’alimentation peut recevoir 2 batteries à la fois. Les 2 batteries se déchargent simultanément via une diode idéale intégrée pour une meilleure efficacité. L’utilisateur peut connecter tout type de batterie au K-ART (PLOMB, NI-MH ou LI-ION) pourvu que sa tension soit comprise entre 9 et 18V. Les jauges de batterie universelles informent l’utilisateur très précisément de l’état de charge des batteries connectées (tension, courant, puissance, capacité, etc …).

Le eSMART K-ART utilise des compteurs de coulomb très performants ainsi qu’une fonction de calibration qui permet de mesurer la capacité de chaque batterie et de prédire ainsi sa capacité restante en temps réel. Ce distributeur d’alimentation est également compatible avec notre gamme de batteries intelligentes eSMART Li-xxWh. Dans le cas d’utilisation de batteries AUDIOROOT eSMART Li-xxWh avec l’eSMART K-ART aucune calibration n’est nécessaire et l’affichage des données concernant les batteries connectées au système est totalement automatique.

Points clés :

  • 10 canaux d’alimentations séparés commutables grâce à des boutons poussoirs illuminés (l’état allumé/éteint de chaque bouton est mémorisé et rappelé automatiquement à chaque allumage du boitier)
  • 1 commutateur principal d’alimentation avec DEL témoin intégrée
  • 12 sortie Hirose 4 broches (2 sorties à l’avant de l’appareil et 10 sorties sur la face arrière). Toutes les sorties Hirose sont commutables par paires.
  • 4 sorties XLR 4 broches (1 sortie à l’avant de l’appareil et 3 sorties sur la face arrière de l’appareil).  Chaque sortie XLR 4 possède son propre commutateur d’alimentation.
  • 4 ports USB avec isolation galvanique (toujours allumés). 2 ports sont situés à l’avant de l’appareil et 2 autres ports sont situés à l’arrière de l’appareil. Le K-ART peut fournir au maximum 3 ampères sur l’ensemble des 4 ports USB.
  • Contrôle temps réel de l’état des 2 batteries connectées : capacité restante (%), estimation de l’autonomie, tension de la batterie, consommation, puissance et compteur de coulomb
  • Fusible ré-armable polyswitch 2.5A sur chaque sortie HIROSE
  • Fusible ré-armable polyswitch 4.0A sur chaque sortie XLR4
  • Fusible ré-armable polyswitch 8.0A sur chaque entrée de batterie
  • Diode clignotante indiquant un niveau de batterie faible (capacité < à 10%)
  • Compatible avec tout type de batterie avec une tension comprise entre 9 et 18V DC
  • Boitier léger en aluminium anodisé
  • Taille : 228 x 120 x 44mm
  • Poids : 700g

Options :

  • Convertisseur DC/DC 12V/20W ou 12V/30W régulé avec isolation galvanique sur la sortie XLR #1
  • Convertisseur DC/DC 12V/20W ou 12V/30W régulé avec isolation galvanique sur la sortie XLR #2
  • Convertisseur DC/DC 12V/12W régulé avec isolation galvanique sur la paire de sorties Hirose #4
  • Convertisseur DC/DC 12V/12W régulé avec isolation galvanique sur la paire de sorties Hirose #5

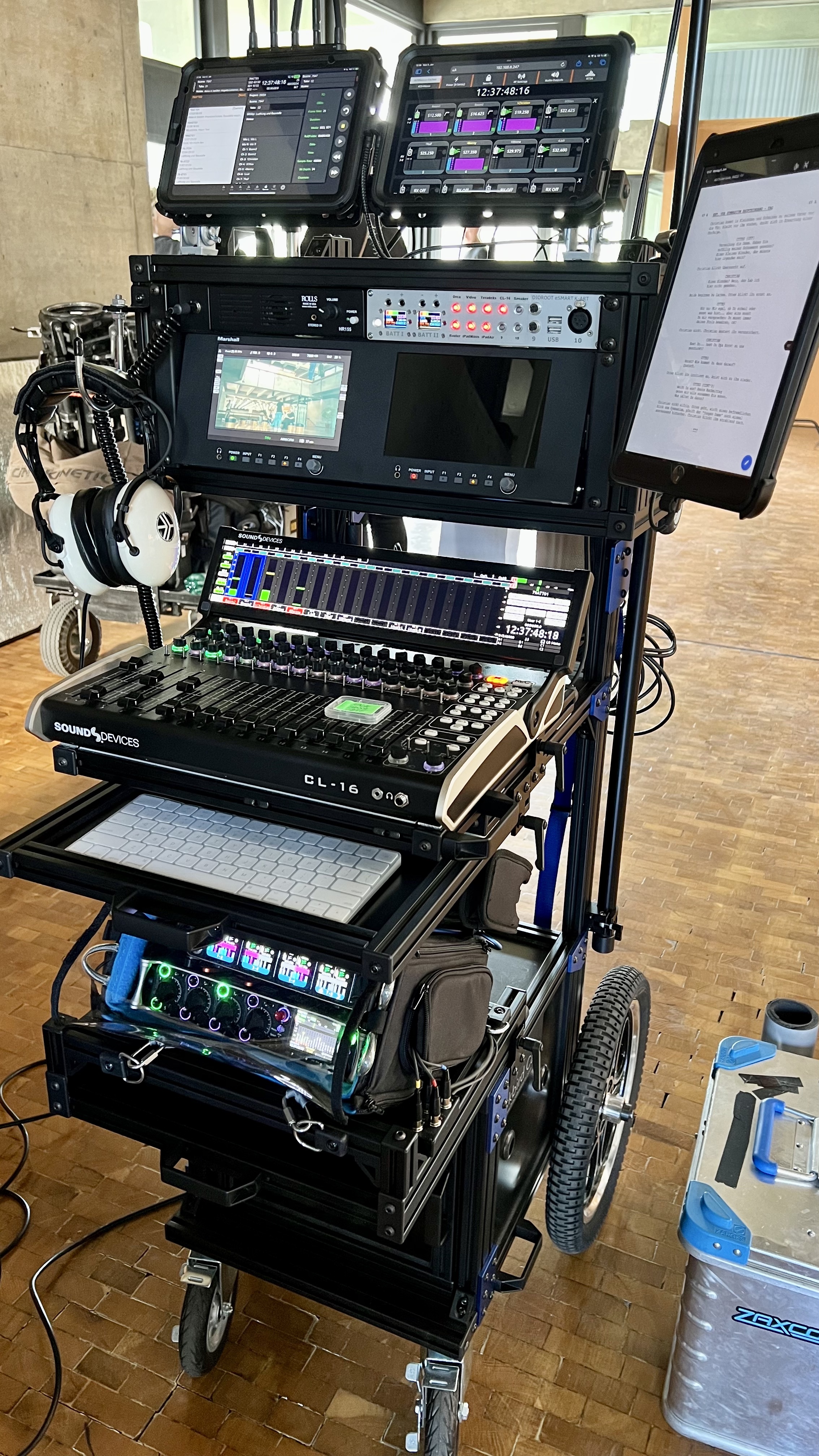

Andre Zacher cart
