vmDBOX

  • vmDBOX
  • vmDBOX-760

Power distributor for sound bag with built-in voltmeter

The Audioroot vmDBOX is an ultra-small, DC power distribution box with 6 protected outputs and an integrated DC voltmeter designed for ENG sound bags. All cables enter and exit from the bottom of the box yielding a much smaller footprint in your bag. The vmDBOX has a DC input connector and 6 DC outs all on Switchcraft 760 locking connectors. Each output is protected with a 2.5 amp resettable fuse.

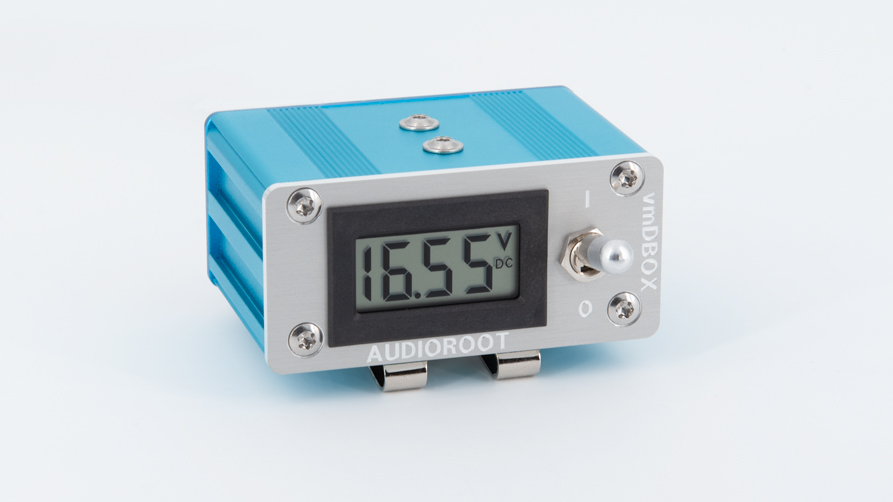

  • Integrated voltmeter for battery voltage monitoring
  • 6 power outputs switchable with one rugged locking switche
  • Polyswitch 2.5A resetable fuses on each output
  • Compatible with any battery ranging from 6.5V to 18V DC

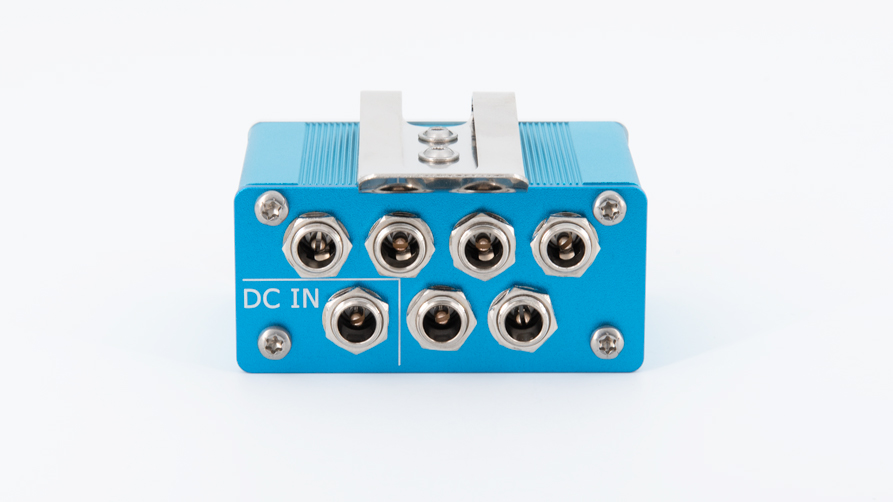

  • Switchcraft 760 locking connector
  • Very low power consumption : the vmDBOX does not affect the battery’s autonomy
  • Compact and lightweight : 130g / 65 x 50 x 30 mm
  • Hirose ouput connectors version available (vmDBOX-HRS)

The DC input connector can be swapped with a Hirose female connector with no additionnal cost
