vmDBOX-HRS

Power distributor for sound bag with built-in voltmeter / Hirose connectors

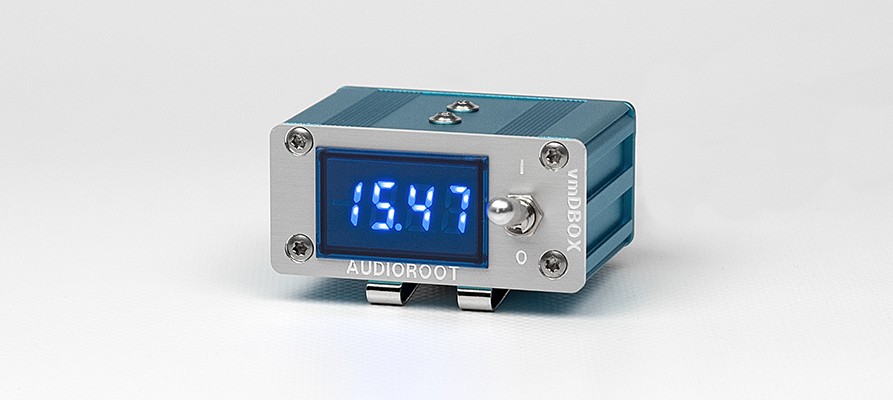

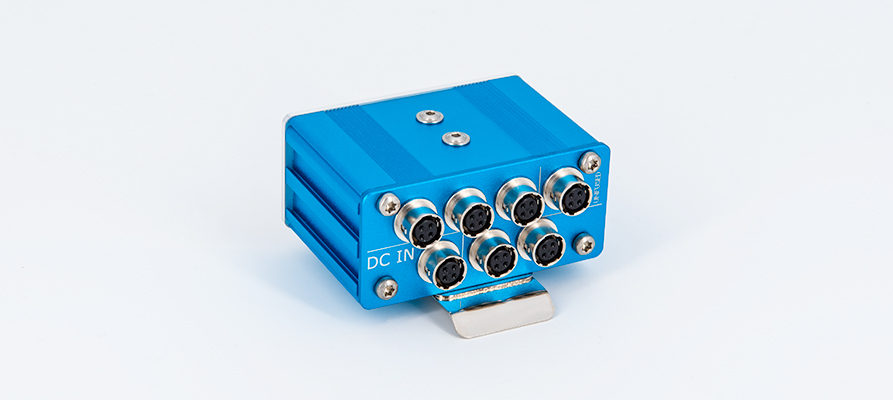

The Audioroot vmDBOX-HRS is an ultra-small, DC power distribution box with 6 protected outputs and an integrated DC voltmeter designed for ENG sound bags. All cables enter and exit from the bottom of the box yielding a much smaller footprint in your bag. The vmDBOX-HRS has a DC input connector and 6 DC outs all on rugged Hirose locking connectors. Each output is protected with a 2.5 amp resettable fuse.

  • Integrated blue LED voltmeter for battery voltage monitoring
  • 6 power outputs switchable with one rugged locking switch
  • Polyswitch 2.5A resetable fuses on each output
  • Compatible with any battery ranging from 6.5V to 18V DC
  • Hirose locking connectors
  • Very low power consumption : the vmDBOX-HRS does not affect the battery’s autonomy
  • Compact and lightweight : 130g / 65 x 50 x 30 mm
  • Maximum recommended total current load : 7A
