eSMART BH2

Dual battery holder/holster/combiner with DTAP and lead output cable for eSMART lithium batteries

Overview

The AUDIOROOT eSMART BH2 is a versatile dual battery holder/holster/combiner designed for eSMART Lithium batteries, offering a robust solution for powering your professional audio and video equipment. With advanced features and flexible configurations, the BH2 ensures reliable and efficient battery management for demanding production environments.

Key Features
- Dual Battery Slots: Equipped with two battery slots featuring spring-loaded locking mechanisms, the BH2 allows for easy single-hand removal and replacement of batteries.
- Belt/Bag Clip: The BH2 comes with a belt/bag clip that can be mounted on either side of the unit for maximum convenience and flexibility.
- D-TAP Output: Includes a D-TAP output for combined power distribution.
- Compatibility: Designed to work seamlessly with 4S2P style (long) batteries, including the eSMART Li-96neo and Li-98Wh models.
Configurations

The BH2 is available in two distinct configurations to suit different power and data needs:
1. Direct Outputs Configuration:

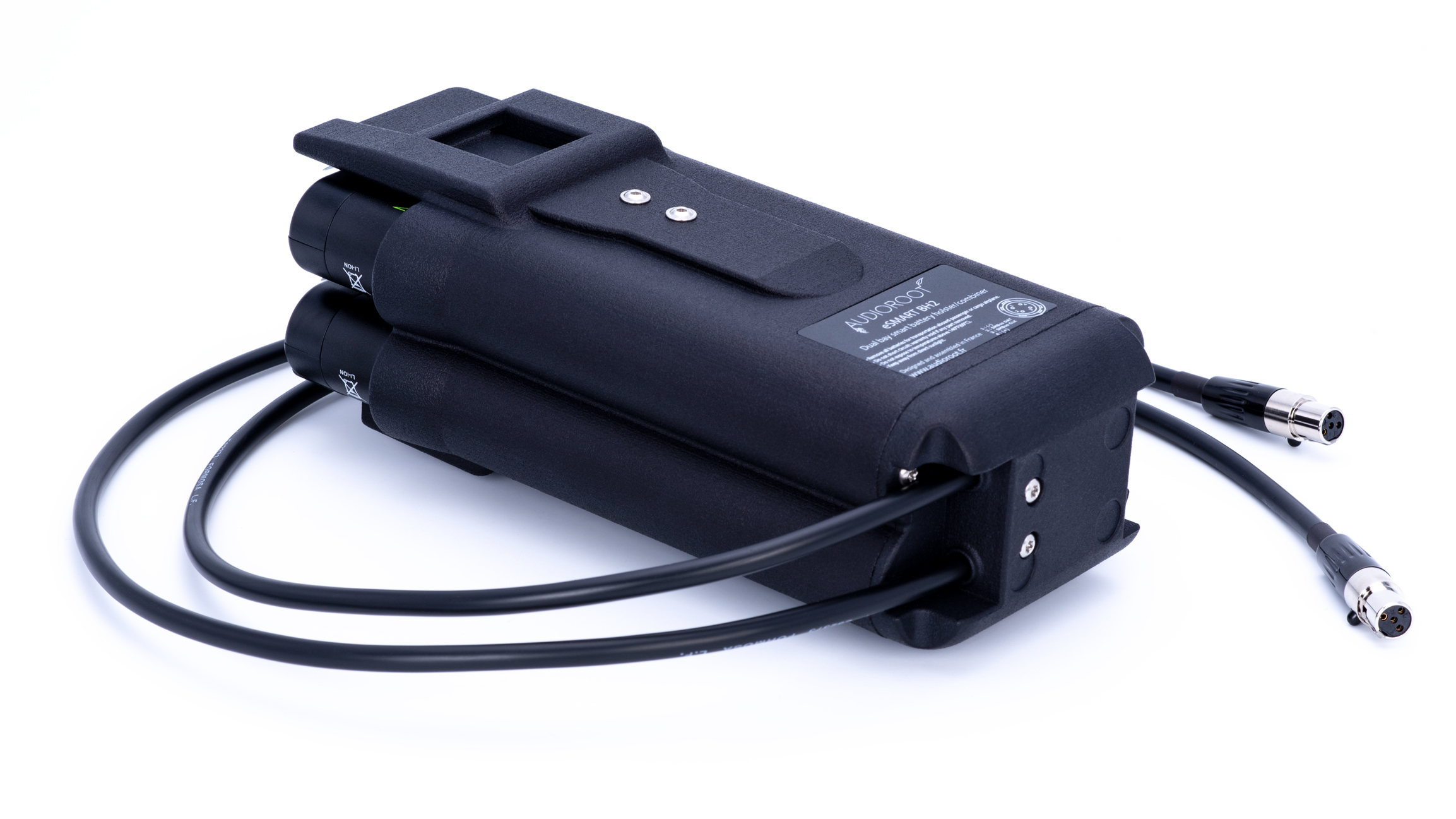

  - Dual Independent Outputs: Features two lead output cables, one for each battery, allowing them to operate and drain independently.

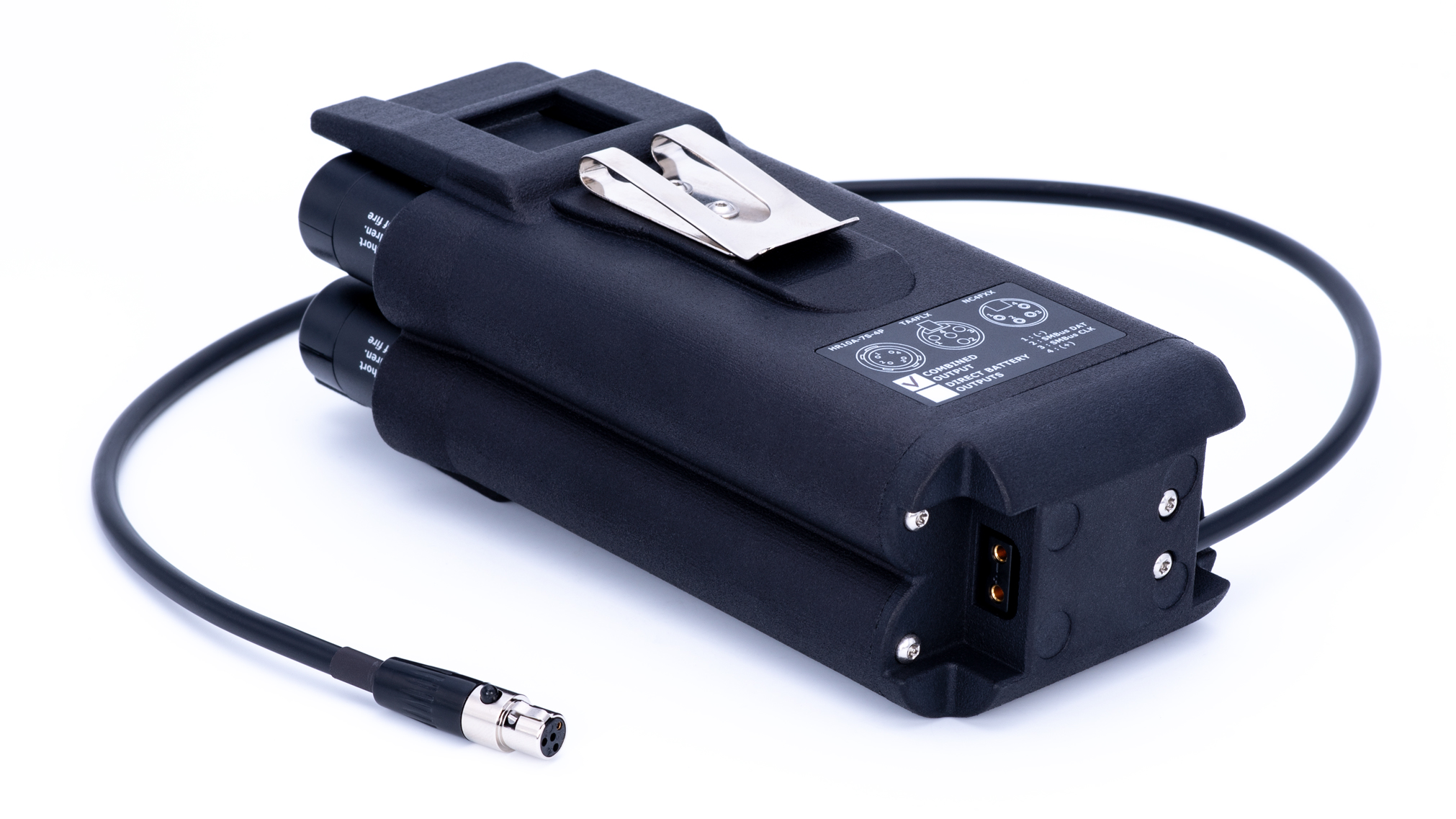

  - Combined Power via D-TAP: Offers a combined power solution through the D-TAP connector located at the bottom of the unit.

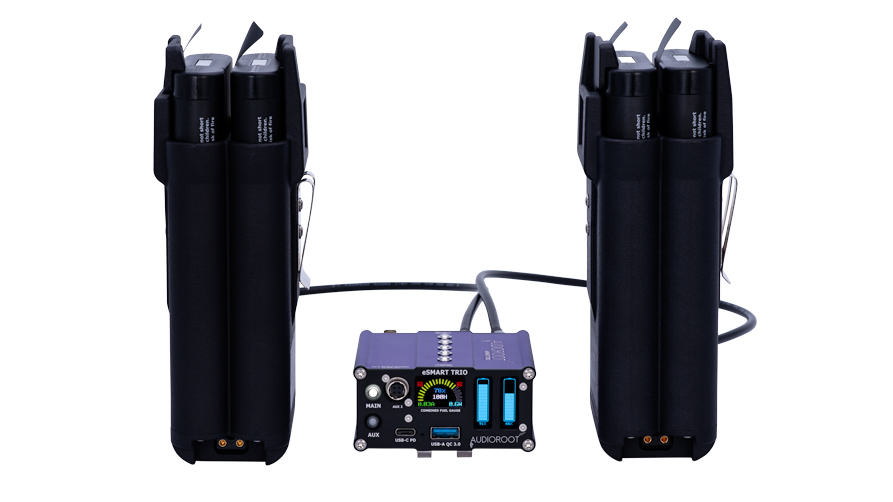

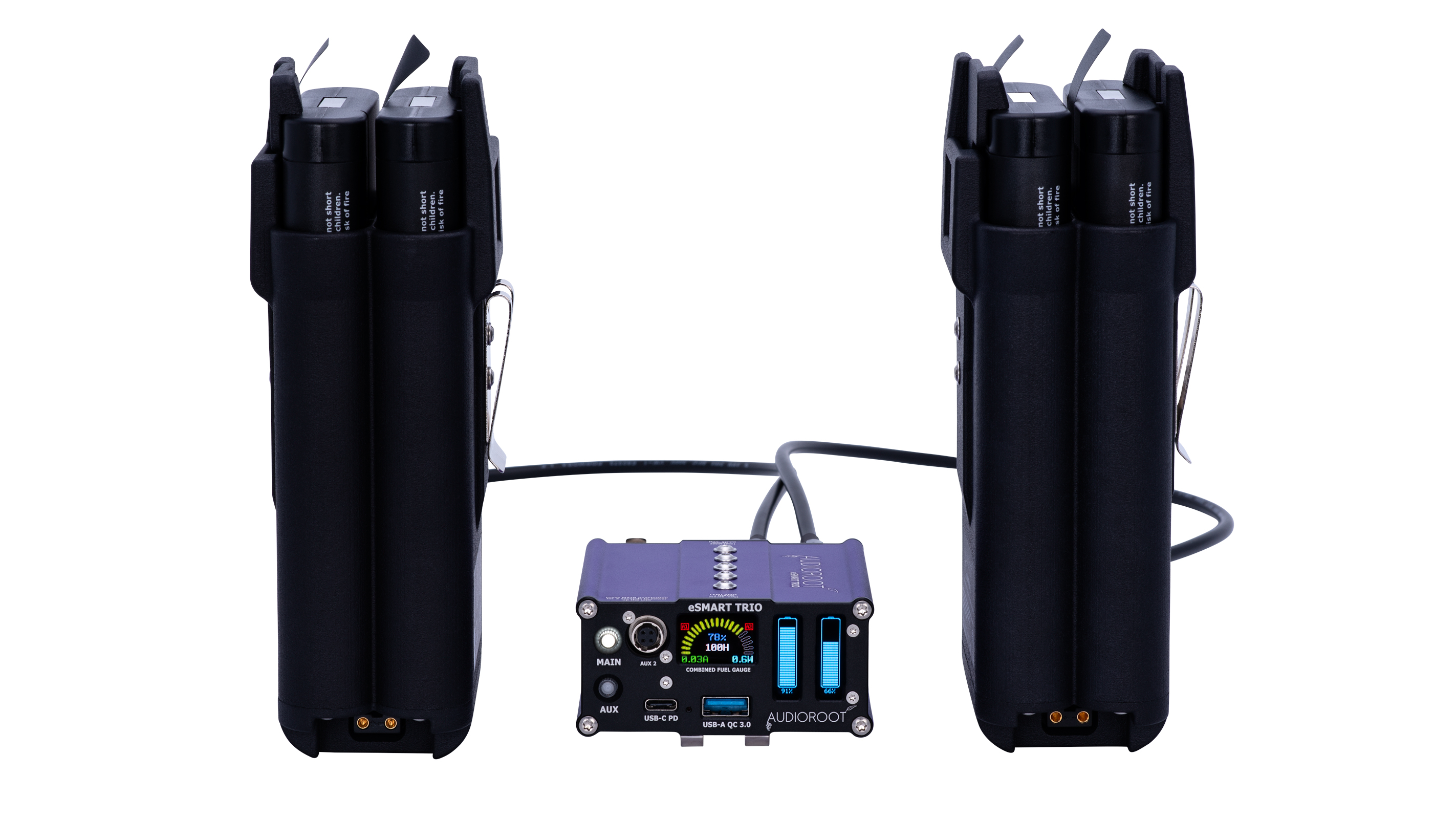

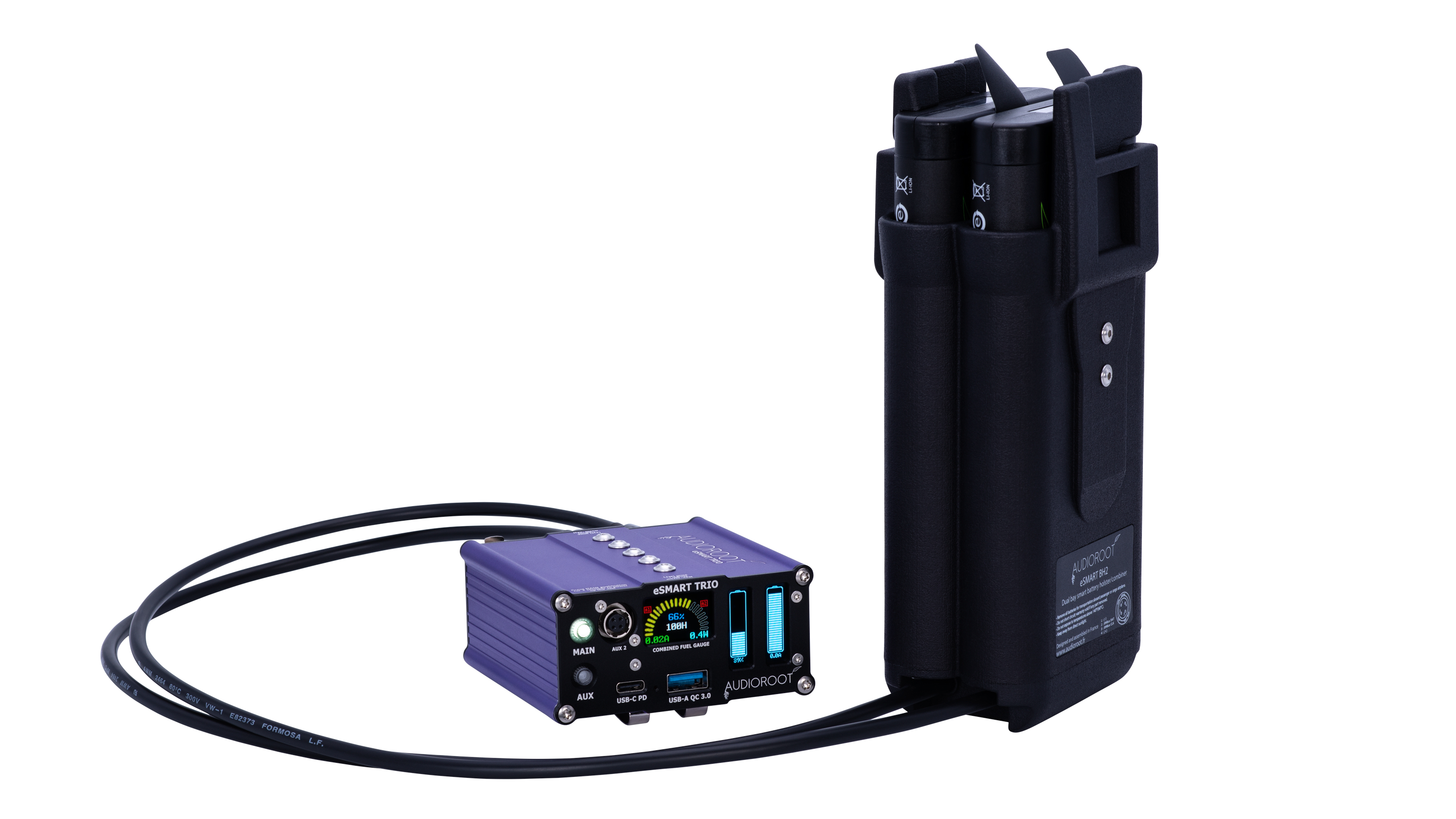

  - The BH2 with 2 direct outputs is the ideal companion of the eSMART TRIO.
2. Combined Power and Data Output Configuration:

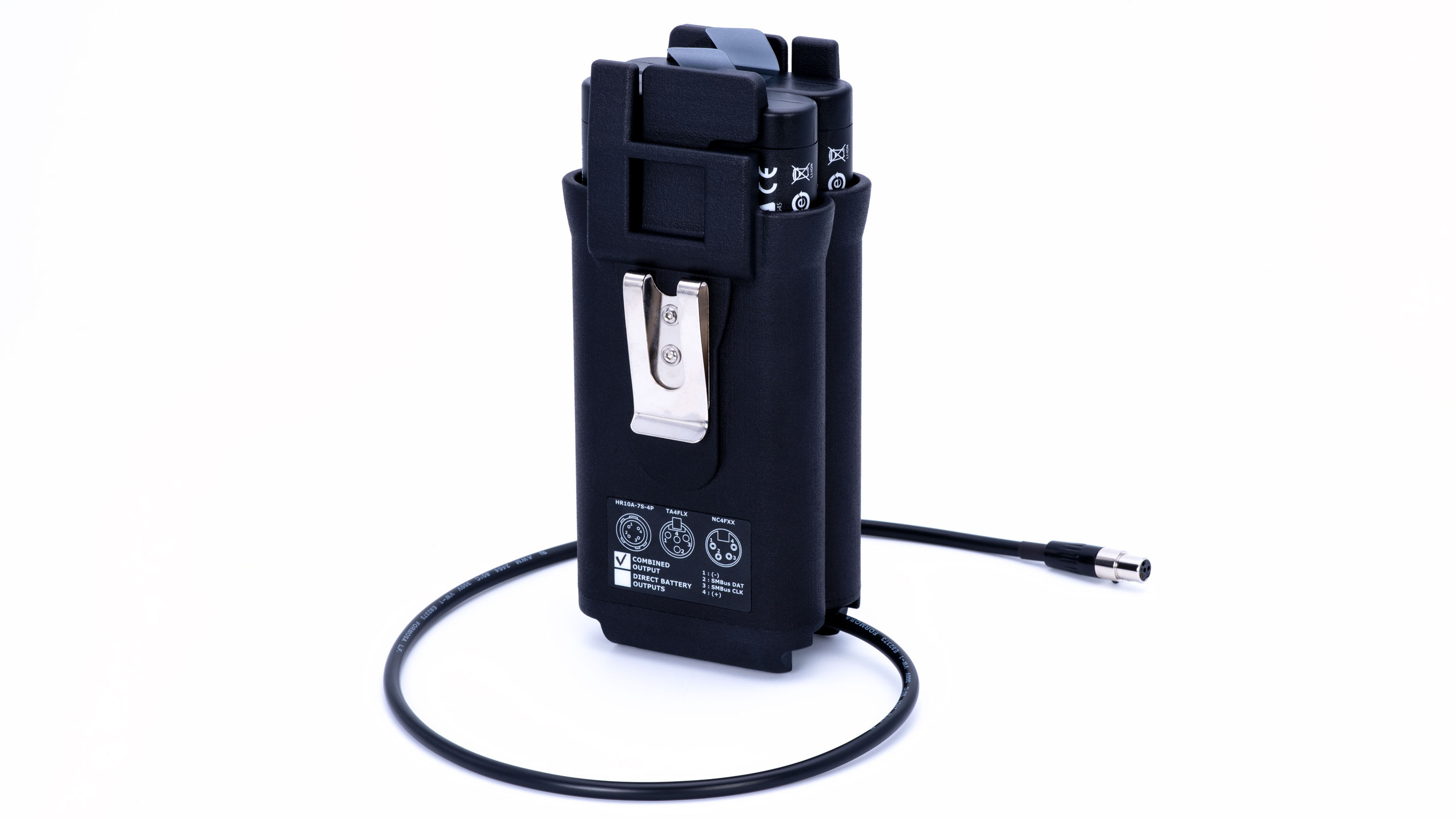

  - Single Combined Output: Provides one lead output cable that actively combines both battery power and data.

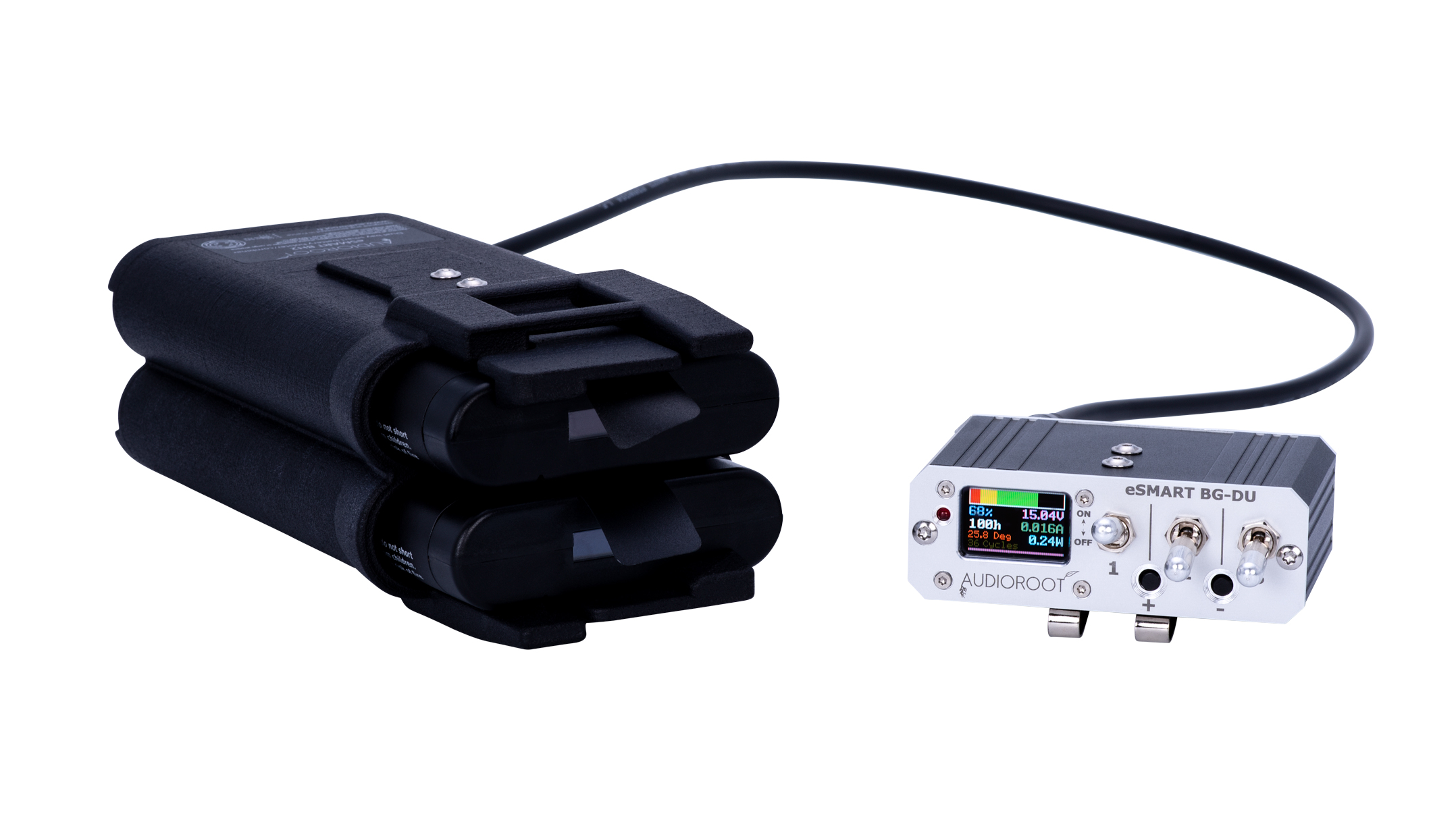

  - Smart Battery Power Distribution: Ideal for connecting 2 batteries simultaneously to single input smart battery power distributors like the BG-DU, allowing both batteries to function as a single unit.
Connector Options

The BH2 is available with different connector types to match your specific requirements:
- 4-Pin Hirose (default): Robust and reliable connector for various applications.
- 4-Pin Switchcraft TA4F: A high-quality connector known for its durability.
- 4-Pin Neutrik XLR4F: Professional-grade connector ensuring secure and stable connections.
- No Connector: For users who prefer to use their own custom connections.
Ordering Information

To order the BH2, use the following format: BH2-X-Y-ZZZ, where:
- X: Output Type
  - D: Direct outputs
  - C: Combined output
- Y: Connector Type
  - H: 4-pin Hirose HRS4 (default)
  - T: 4-pin Switchcraft TA4F female
  - X: 4-pin Neutrik XLR4 female
  - 0: No connector
- ZZZ: Cable Length (in cm, ranging from 20 to 150)
Example:
- BH2-C-T-080: This code specifies a BH2 with combined output, TA4F connector, and 80cm cable length.
Choose the AUDIOROOT eSMART BH2 for a reliable and efficient battery management solution that adapts to your specific power needs, ensuring seamless operation in any production setting.
