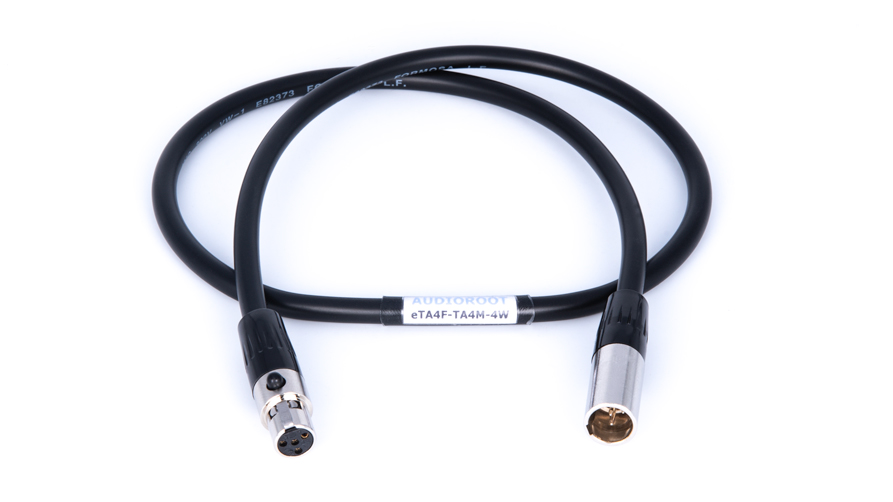

4 conductors TA4M to TA4F power + battery telemetry output cable.

This cable can be used to connect a SD8xx series recorder to the TA4F output of the eSMART TRIO

TA4F/TA4M pinout :

  1. BATT (-)
  2. SMBus data
  3. SMBus clock
  4. BATT(+)
  • 60 cm long cable (other lenghts on request)
  • TA4M connector on one end
  • TA4F connector on the other end
  • 2C/26AWG (GREEN/WHITE)  + 2C/18AWG (BLACK/RED) 4 conductor cable (PVC insulation and jacket)

AUDIOROOT reference : eTA4F-TA4F-4W
