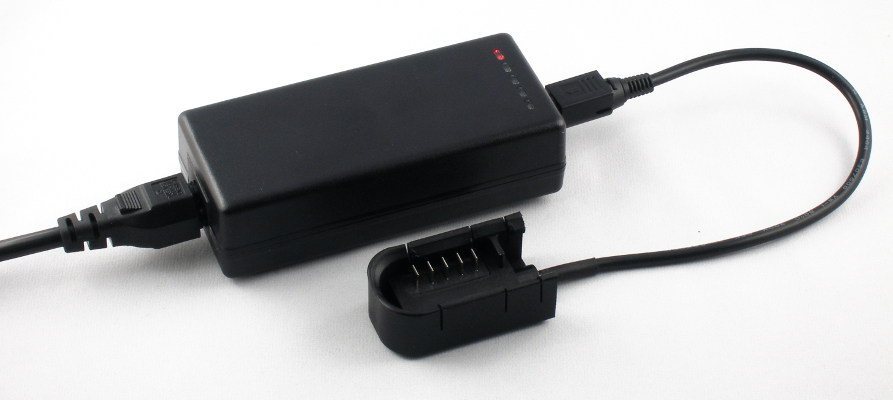

eLC-SMB

Li-Ion portable smart battery charger

Low cost portable charger for our eSMART Li-XXwh lithium battery range. Replaces the eLC-AMP which is discontinued.

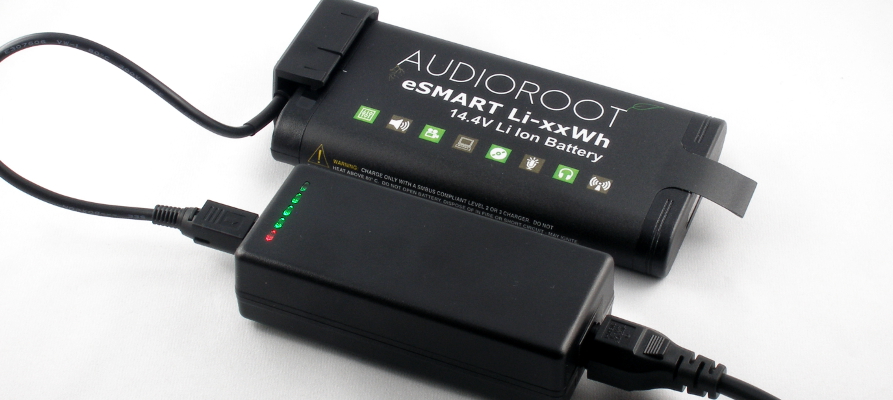

The eLC-SMB is a fast, reliable and secure charger for li-ion smart batteries. It charges a 49 or 98 Wh battery in 3 hours. Thanks to it’s lightweight and compact design the eLC-SMB can be carried on anywhere in a backpack or directly in the sound bag

The charger is 100% SMBus 1.1 compliant. Charging current and voltage are automatically programmed by the battery itself each time it is connected  to the charger. The charging process is monitored in real time using parameters such as charging current, battery voltage and temperature. A 5 led bar-graph indicates the charging progress. The charger also features a battery wake-up function for fully depleted batteries.

Dimensions: 128 x 51.5 x 33 mm
Weight: 200 g
Input Voltage: AC 100~240 V
Maximum Output power: 40 W
Standby power consumption: <1 W
Laptop battery charge output voltage: 7.2~14.8 V
Output current: 2.5 A MAX
